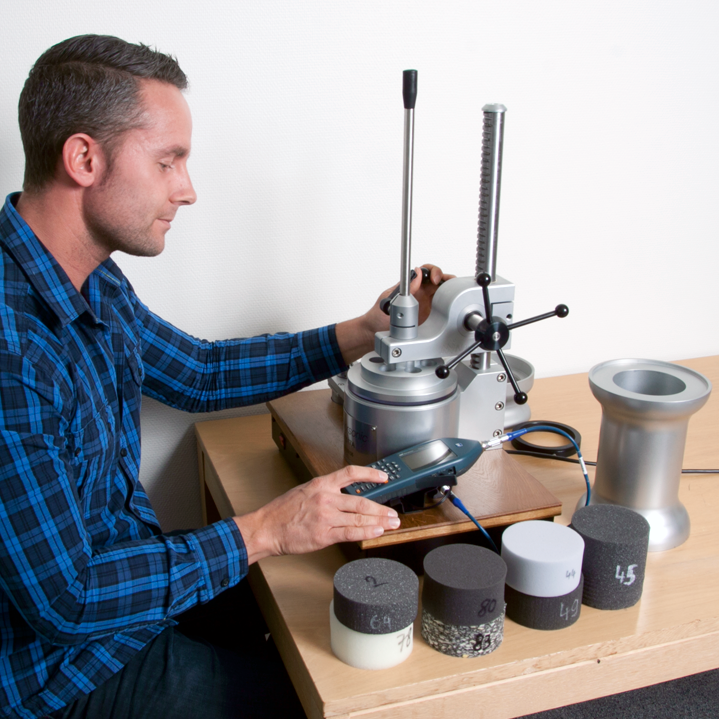

Nor1517A

Luchtstroomweerstand meetsysteem


De Nor1517A meet de luchtstroom weerstand van poreuze materialen volgens de ISO 9053 / DIN EN 29053 (DIN 52213).

Specificaties:

  • Fast and accurate measurement and readout of measurement results.
  • Accepts test material of various form and size.
  • Easy setup and use.
  • Large dynamic range of measurement.
  • Measures at 2 Hz.
  • Standards: ISO 9053 / DIN EN 29053 (replaces DIN 52213).
  • Measurement range: 10 Pa s/m to 30 000 Pa s/m, up to 200 000 Pa s/m when correcting for non linearity.
  • Airflow resistance: 0,5 cm/s and 0,05 cm/s.
  • The piston can be set for 2 different stroke lengths: 28 mm and 2,8 mm.
  • Max. diameter of test pieces: 100 mm

Downloads:

Product data Norsonic Nor1517A airflow resistance meter
